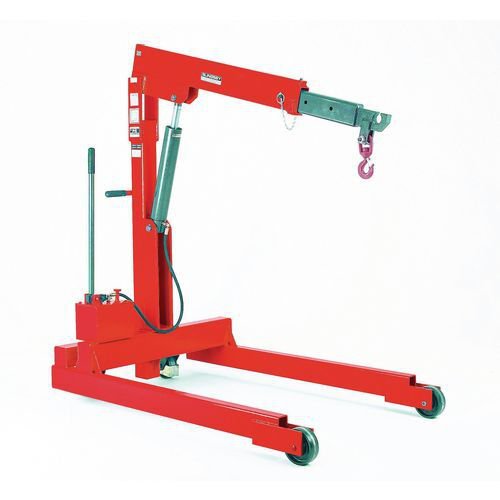

Heavy duty floor cranes, capacity 3000kg
Product Code:
326330
Pack Of
1
Base Leg Inside Width mm: 1110.
Capacity kg at Jib Position 1: 3000.
Capacity kg at Position 1: 3000.
Capacity kg at Position 2: 2000.
Capacity kg at Position 3: 1500.
Capacity kg at Position 4: 1000.
Colour: Red.
Floor to Down Height mm: 730.
GTIN: 5052105122137.
Knock-of Wheels mm: 150.
Load Centre mm at Position 1: 1000.
Load Centre mm at Position 2: 1092.
Load Centre mm at Position 3: 1270.
Load Centre mm at Position 4: 1422.
Max. Floor to Hook Height mm: 2565.
Min. Floor to Hook Height mm: 915.
Overall Base Length mm: 2080.
Overall Height With Jib Horizontal mm: 1780.
Overall Width mm: 1270.
Weight kg: 350.
Wheel Material: Nylon.
- General
- Base Leg Inside Width mm: 1110.
Capacity kg at Jib Position 1: 3000.
Capacity kg at Position 1: 3000.
Capacity kg at Position 2: 2000.
Capacity kg at Position 3: 1500.
Capacity kg at Position 4: 1000.
Colour: Red.
Floor to Down Height mm: 730.
GTIN: 5052105122137.
Knock-of Wheels mm: 150.
Load Centre mm at Position 1: 1000.
Load Centre mm at Position 2: 1092.
Load Centre mm at Position 3: 1270.
Load Centre mm at Position 4: 1422.
Max. Floor to Hook Height mm: 2565.
Min. Floor to Hook Height mm: 915.
Overall Base Length mm: 2080.
Overall Height With Jib Horizontal mm: 1780.
Overall Width mm: 1270.
Weight kg: 350.
Wheel Material: Nylon.
| Type | Handling & Lifting |
| Manufacturer | HC Slingsby PLC |
| Brand | Slingsby |
| Colour | Red |
| Form | Crane |
| Weight | 350kg |
| Capacity Position 1/2/3 | 3000/2000/1500kg |
| Fixed column |
| Heavy duty swivel hook fitted with safety catch |
| Rear wheels - swivel castors, both with toe guards |
| Tested to 25% overload and supplied with test certificate |
×
