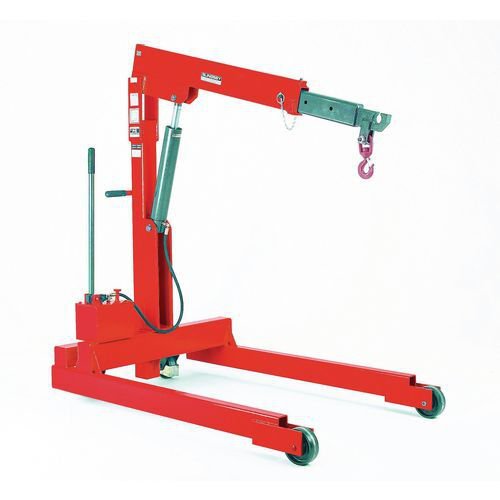

Heavy duty floor cranes, capacity 2500kg
Product Code:
326329
Pack Of
1
Base Leg Inside Width mm: 1100.
Capacity kg at Jib Position 1: 2500.
Capacity kg at Position 1: 2500.
Capacity kg at Position 2: 2000.
Capacity kg at Position 3: 1750.
Capacity kg at Position 4: 1250.
Colour: Red.
Floor to Down Height mm: 750.
GTIN: 5052105122120.
Knock-of Wheels mm: 200.
Load Centre mm at Position 1: 1300.
Load Centre mm at Position 2: 1490.
Load Centre mm at Position 3: 1700.
Load Centre mm at Position 4: 1900.
Max. Floor to Hook Height mm: 2950.
Min. Floor to Hook Height mm: 680.
Overall Base Length mm: 2070.
Overall Height With Jib Horizontal mm: 2230.
Overall Width mm: 1310.
Weight kg: 300.
Wheel Material: Cast iron with hard rubber tyre.
- General
- Base Leg Inside Width mm: 1100.
Capacity kg at Jib Position 1: 2500.
Capacity kg at Position 1: 2500.
Capacity kg at Position 2: 2000.
Capacity kg at Position 3: 1750.
Capacity kg at Position 4: 1250.
Colour: Red.
Floor to Down Height mm: 750.
GTIN: 5052105122120.
Knock-of Wheels mm: 200.
Load Centre mm at Position 1: 1300.
Load Centre mm at Position 2: 1490.
Load Centre mm at Position 3: 1700.
Load Centre mm at Position 4: 1900.
Max. Floor to Hook Height mm: 2950.
Min. Floor to Hook Height mm: 680.
Overall Base Length mm: 2070.
Overall Height With Jib Horizontal mm: 2230.
Overall Width mm: 1310.
Weight kg: 300.
Wheel Material: Cast iron with hard rubber tyre.
| Type | Handling & Lifting |
| Manufacturer | HC Slingsby PLC |
| Brand | Slingsby |
| Colour | Red |
| Form | Crane |
| Weight | 300kg |
| Capacity Position 1/2/3 | 2500/2000/1750kg |
| Colour: red |
| Fixed column |
| Heavy duty swivel hook fitted with safety catch |
| Rear wheels - swivel castors, both with toe guards |
| Tested to 25% overload and supplied with test certificate |
×
