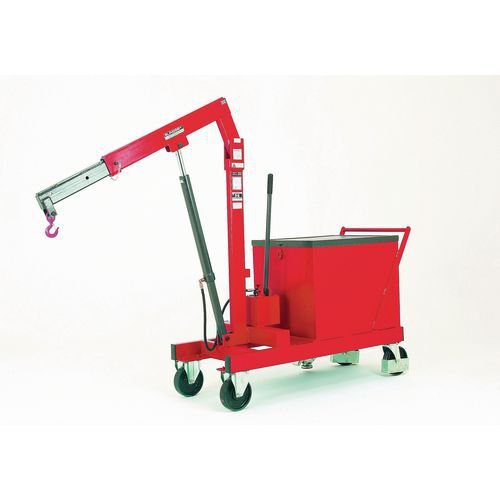

Counter balanced crane, 152kg capacity
Product Code:
325993
Pack Of
1
Base Length mm: 990.
Base Width mm: 540.
Capacity kg at Jib Position 1: 152.
Capacity kg at Jib Position 2: 102.
Capacity kg at Jib Position 3: 76.
Colour: Red.
Column Height mm: 1620.
GTIN: 5052105119908.
Max./Min. Hook Height mm at Jib Position 1: 2060/910.
Max./Min. Hook Height mm at Jib Position 2: 2230/810.
Max./Min. Hook Height mm at Jib Position 3: 2370/710.
No. of Wheels: 4.
Weight of Balance Reqd. for Max. Capacity Kg: 200.
Weight Without Counter Balance kg: 135.
Wheel Diameter mm: 125.
Wheel Type: 2 fixed and 2 swivel polyurethane tyred castors, swivel castors fitted with brakes.
- General
- Base Length mm: 990.
Base Width mm: 540.
Capacity kg at Jib Position 1: 152.
Capacity kg at Jib Position 2: 102.
Capacity kg at Jib Position 3: 76.
Colour: Red.
Column Height mm: 1620.
GTIN: 5052105119908.
Max./Min. Hook Height mm at Jib Position 1: 2060/910.
Max./Min. Hook Height mm at Jib Position 2: 2230/810.
Max./Min. Hook Height mm at Jib Position 3: 2370/710.
No. of Wheels: 4.
Weight of Balance Reqd. for Max. Capacity Kg: 200.
Weight Without Counter Balance kg: 135.
Wheel Diameter mm: 125.
Wheel Type: 2 fixed and 2 swivel polyurethane tyred castors, swivel castors fitted with brakes.
| Type | Handling & Lifting |
| Manufacturer | HC Slingsby PLC |
| Brand | Slingsby |
| Colour | Red |
| Form | Crane |
| Wheel Diameter | 125mm |
| Capacity Position 1/2/3 | 152/102/76kg |
| Column Height | 1620mm |
| Allows operator freedom to work close to a machine without fouling floor obstructions |
| Colour: Red |
| Compact crane which is ideal for use where lifting is required in confined areas |
| Container for holding ballast (not supplied) with each crane |
| Tested to 25% overload and supplied with test certificate |
×
