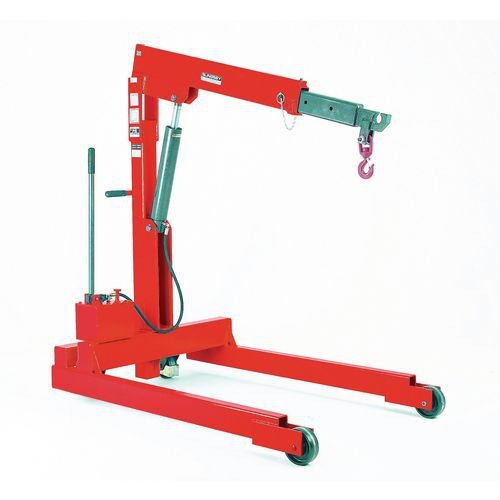

Heavy duty floor cranes, capacity 1000kg
Product Code:
326326
Pack Of
1
Base Leg Inside Width mm: 770.
Capacity kg at Jib Position 1: 1000.
Capacity kg at Position 1: 1000.
Capacity kg at Position 2: 750.
Capacity kg at Position 3: 500.
Colour: Red.
Floor to Down Height mm: 630.
GTIN: 5052105122090.
Knock-of Wheels mm: 125.
Load Centre mm at Position 1: 930.
Load Centre mm at Position 2: 1180.
Load Centre mm at Position 3: 1330.
Max. Floor to Hook Height mm: 2380.
Min. Floor to Hook Height mm: 640.
Overall Base Length mm: 1560.
Overall Height With Jib Horizontal mm: 1645.
Overall Width mm: 940.
Weight kg: 150.
Wheel Material: Polyurethane.
- General
- Base Leg Inside Width mm: 770.
Capacity kg at Jib Position 1: 1000.
Capacity kg at Position 1: 1000.
Capacity kg at Position 2: 750.
Capacity kg at Position 3: 500.
Colour: Red.
Floor to Down Height mm: 630.
GTIN: 5052105122090.
Knock-of Wheels mm: 125.
Load Centre mm at Position 1: 930.
Load Centre mm at Position 2: 1180.
Load Centre mm at Position 3: 1330.
Max. Floor to Hook Height mm: 2380.
Min. Floor to Hook Height mm: 640.
Overall Base Length mm: 1560.
Overall Height With Jib Horizontal mm: 1645.
Overall Width mm: 940.
Weight kg: 150.
Wheel Material: Polyurethane.
| Type | Handling & Lifting |
| Manufacturer | HC Slingsby PLC |
| Brand | Slingsby |
| Colour | Red |
| Form | Crane |
| Weight | 150kg |
| Capacity Position 1/2/3 | 1000/750/500kg |
| Colour: red |
| Fixed column |
| Heavy duty swivel hook fitted with safety catch |
| Rear wheels - swivel castors, both with toe guards |
| Tested to 25% overload and supplied with test certificate |
×
