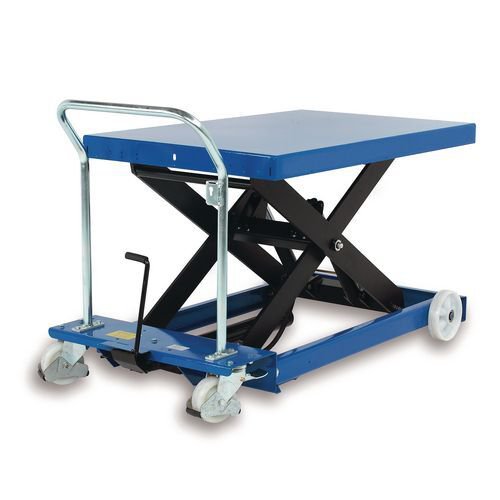

Mobile lift tables - Manually operated mobile lift tables, single lift - capacity
Product Code:
388144
Pack Of
1
Capacity kg: 500.
Closed Platform Height mm: 340.
GTIN: 5052105346113.
Height mm: 925.
Lowered Height mm: 340.
Made To Order: Yes, non-returnable.
Max. Lifting Height mm: 900.
Min. Lifting Height mm: 340.
No. of Wheels: 4.
Overall Length mm: 1320.
Overall Width mm: 610.
Platform Length mm: 1030.
Platform Material: Steel.
Platform Width mm: 610.
Raised Height mm: 900.
Raised Platform Height mm: 900.
Type: Single scissor lift.
Weight kg: 109.
Wheel Diameter mm: 125.
Wheel Type: Non-marking.
- General
- Capacity kg: 500.
Closed Platform Height mm: 340.
GTIN: 5052105346113.
Height mm: 925.
Lowered Height mm: 340.
Made To Order: Yes, non-returnable.
Max. Lifting Height mm: 900.
Min. Lifting Height mm: 340.
No. of Wheels: 4.
Overall Length mm: 1320.
Overall Width mm: 610.
Platform Length mm: 1030.
Platform Material: Steel.
Platform Width mm: 610.
Raised Height mm: 900.
Raised Platform Height mm: 900.
Type: Single scissor lift.
Weight kg: 109.
Wheel Diameter mm: 125.
Wheel Type: Non-marking.
| Type | Lifting Tables |
| Manufacturer | HC Slingsby PLC |
| Brand | Slingsby |
| Colour | Blue/Black |
| Weight | 109kg |
| Maximum Load | 500kg |
| With Castors | Yes |
| Platform Size | 610m1030mm |
| Lowered Height | 340mm |
| Lifting Height | 900mm |
| Each table is issued with operating instructions and a test certificate in conformance with BS EN1570 |
| Fitted with total stop brakes, twin-braked castors, toe guards and finger guards |
| Hydraulic footpump operation |
| Light, portable and easy to use |
| Lowering speed controlled by an overload valve and slow lowering valve |
| On smooth running non-marking polyurethane tyres with sealed bearings. Available in blue |
| One braked castor fitted as standard, both castors have toe guards |
×
