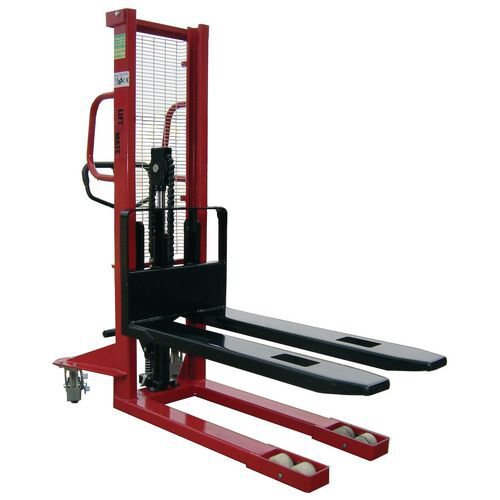

1000kg Manual pallet stackers - fixed forks
Product Code:
400606
Pack Of
1
Capacity kg: 1000.
Fork Height Lowered mm: 85.
Fork Length mm: 1100.
Fork Width mm: 550.
GTIN: 5052105456430.
Lift Height mm: 1600.
Lifting Height mm: 1600.
Load Centre mm: 600.
Material: Steel.
Overall Height mm: 2080.
Overall Length mm: 1640.
Type: Single mast.
Weight kg: 230.
Width Over Forks mm: 550.
- General
- Capacity kg: 1000.
Fork Height Lowered mm: 85.
Fork Length mm: 1100.
Fork Width mm: 550.
GTIN: 5052105456430.
Lift Height mm: 1600.
Lifting Height mm: 1600.
Load Centre mm: 600.
Material: Steel.
Overall Height mm: 2080.
Overall Length mm: 1640.
Type: Single mast.
Weight kg: 230.
Width Over Forks mm: 550.
| Type | Pallet Trucks |
| Manufacturer | HC Slingsby PLC |
| Brand | Slingsby |
| Colour | Red/Black |
| Weight | 230kg |
| Dimensions | 740x1640x2080mm |
| Maximum Load | 1000kg |
| Fork Height | 85-1600mm |
| Fork Size | 550x1100mm |
| Available with four different lift heights - 1200mm, 1600mm, 2500mm or 3000mm |
| Ergonomic pump handle and foot pump, giving you a choice of operation |
| For lifting and handling euro pallets at height |
| Fork L x W 1100 x 570mm |
| Fully adjustable lowering speed |
| Lift stroke 25mm |
| Lifting fork height 85mm |
| Load centre 600mm |
| On 150mm dia nylon castors and 80mm dia. nylon front rollers |
| Shorter two models are single (mono) masted, whilst the 2500 and 3000mm models are double masted (duplex) versions, allowing for a lower overall closed height |
×
