Bosch GTC 600 C Professional Thermal Camera 12V 1 x 2.0Ah Li-ion
Product Code: BSH601083570
Pack Of 1
Item is not in stock
The Bosch GTC 600 C Professional Thermal Camera detects temperature differences quickly and easily, even outdoors. It features a high thermal resolution and wide measuring range for a maximum of thermal measuring applications. Convenient voice note, the Bosch ThermalOn app and the GTC Transfer Software enable easy documentation of thermal images. An intuitive user interface and seamlessly integrated features such as emissivity value presets and an improved gallery with both IR and visual images deliver successful results in minimum clicks.

The robust GTC 600 C can withstand falling from a height of 2m, has a protection class of IP54, and can be used on jobsites even under the toughest conditions. Additionally, its 12V Li-ion batteries give the tool an outstanding runtime. Documenting and sharing measured values is easy with the corresponding Bosch app thanks to its Simple Exchange functionality for transferring data. This tool is ideal for detecting insulation problems and unwanted hot or cold spots.

Specifications:

Measurement Range: -20 ?C to +600 ?C.
Measuring Accuracy of IR: ? 2.0?C??.
Resolution: 0.1 ?C.
Minimum Focus Distance: 0.3m
Thermal sensitivity (NETD): <=50 mK.
Thermal Image Refresh Rate: 9 Hz.
Size of IR Sensor: 256 x 192 px
Number of Measuring Points: 49,152.
Size of Display: 3.5in
Frame Buffer (number of images): 600.
File Format of Image: .jpg.
Frame Buffer (number of images each with audio): 350.
File Format of Audio: .wav.
Data Transfer: Wi-Fi, USB-C?.
Shock Protection: 2m.
Dust and Splash Protection: IP54**.
Weight: 0.6kg.

(**except for the lithium-ion battery pack)

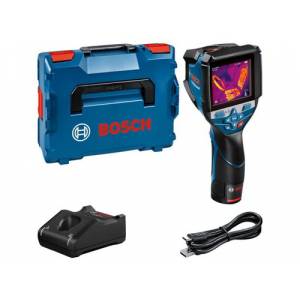

This Bosch GTC 600 C Professional Thermal Camera is supplied with:

1 x 12V 2.0Ah Li-ion Battery.
1 x GAL 12V-40 Professional Quick Charger.
1 x USB-C?"? Cable.
1 x L-BOXX inlay for accessories.
1 x L-BOXX inlay for tool.
1 x L-BOXX 136.
General
The Bosch GTC 600 C Professional Thermal Camera detects temperature differences quickly and easily, even outdoors. It features a high thermal resolution and wide measuring range for a maximum of thermal measuring applications. Convenient voice note, the Bosch ThermalOn app and the GTC Transfer Software enable easy documentation of thermal images. An intuitive user interface and seamlessly integrated features such as emissivity value presets and an improved gallery with both IR and visual images deliver successful results in minimum clicks.

The robust GTC 600 C can withstand falling from a height of 2m, has a protection class of IP54, and can be used on jobsites even under the toughest conditions. Additionally, its 12V Li-ion batteries give the tool an outstanding runtime. Documenting and sharing measured values is easy with the corresponding Bosch app thanks to its Simple Exchange functionality for transferring data. This tool is ideal for detecting insulation problems and unwanted hot or cold spots.

Specifications:

Measurement Range: -20 ?C to +600 ?C.
Measuring Accuracy of IR: ? 2.0?C??.
Resolution: 0.1 ?C.
Minimum Focus Distance: 0.3m
Thermal sensitivity (NETD): <=50 mK.
Thermal Image Refresh Rate: 9 Hz.
Size of IR Sensor: 256 x 192 px
Number of Measuring Points: 49,152.
Size of Display: 3.5in
Frame Buffer (number of images): 600.
File Format of Image: .jpg.
Frame Buffer (number of images each with audio): 350.
File Format of Audio: .wav.
Data Transfer: Wi-Fi, USB-C?.
Shock Protection: 2m.
Dust and Splash Protection: IP54**.
Weight: 0.6kg.

(**except for the lithium-ion battery pack)

This Bosch GTC 600 C Professional Thermal Camera is supplied with:

1 x 12V 2.0Ah Li-ion Battery.
1 x GAL 12V-40 Professional Quick Charger.
1 x USB-C?"? Cable.
1 x L-BOXX inlay for accessories.
1 x L-BOXX inlay for tool.
1 x L-BOXX 136.
TypeDetectors & Testers
ManufacturerBosch
BrandBosch
FormThermo Detector
Size of Display3.5in
Frame Buffer600
Measurement RangeMinus 20 to 600 Degrees Celsius
