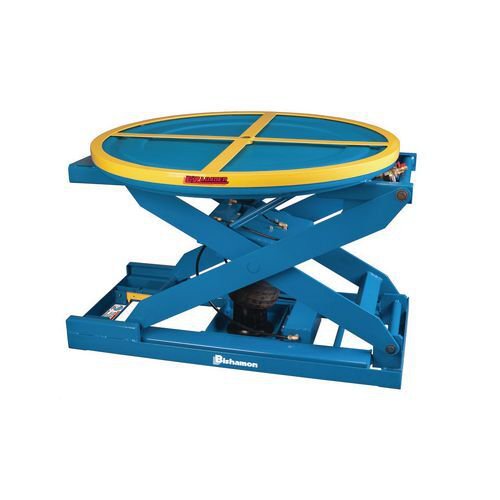

Air operated load levelling pallet positioner
Product Code:
358034
Pack Of
1
Capacity kg: 1814.
GTIN: 5052105167138.
Made To Order: Yes, non-returnable.
Platform Lowered Height mm: 267.
Platform Raised mm: 775.
Ring Diameter mm: 1092.
Weight kg: 239.
- General
- Capacity kg: 1814.
GTIN: 5052105167138.
Made To Order: Yes, non-returnable.
Platform Lowered Height mm: 267.
Platform Raised mm: 775.
Ring Diameter mm: 1092.
Weight kg: 239.
| Type | Lifting Tables |
| Manufacturer | HC Slingsby PLC |
| Brand | Slingsby |
| Colour | Blue/Yellow |
| Weight | 239kg |
| Maximum Load | 1814kg |
| Platform Size | 1092mm Diameter |
| Lowered Height | 267mm |
| Lifting Height | 775mm |
| Base L x W: 1245 x 617mm |
| Captive air operation eliminates cumbersome mechanical springs and gives more controlled (dampened) movement to the platform |
| Easily transportable within the workplace by fork lift truck |
| Infinitely adjustable for varied loads by simply adding or bleeding air - no difficult changing of springs required |
| Integral rotator ring helps eliminate reaching and stretching |
| Max. capacity 1814kg (1588kg self-levelling) |
| Mini. capacity 113kg |
| Platform height 267 - 775mm |
| Ring dia. 1092mm |
| Self-levelling design automatically keeps the top of the load at a convenient working height to help eliminate bending and improve productivity |
×
