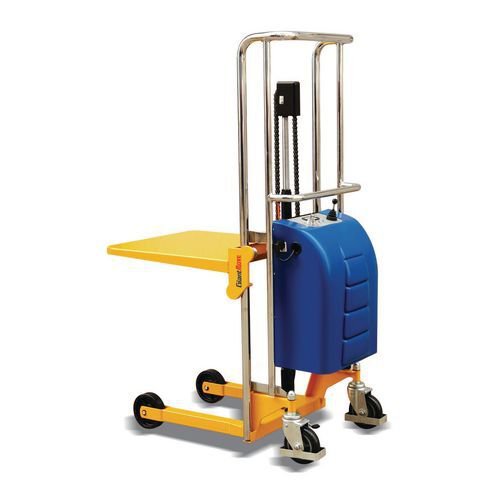

Powered mini stacker
Product Code:
410165
Pack Of
1
Capacity kg at Load Centre mm: 400. Capacity kg: 400. Fork Height Lowered mm: 180. Fork Height Raised mm: 1580. Fork Wheel Diameter mm: 125. Lifting Height mm: 1500. Material: Steel. Max. Platform Height mm: 1580. Min. Platform Height mm: 180. Overall Height mm: 1750. Overall Length mm: 940. Overall Width mm: 595. Platform Length mm: 650. Platform Width mm: 595. Steering Castor Material: 125. Weight kg: 118.
- General
- Capacity kg at Load Centre mm: 400. Capacity kg: 400. Fork Height Lowered mm: 180. Fork Height Raised mm: 1580. Fork Wheel Diameter mm: 125. Lifting Height mm: 1500. Material: Steel. Max. Platform Height mm: 1580. Min. Platform Height mm: 180. Overall Height mm: 1750. Overall Length mm: 940. Overall Width mm: 595. Platform Length mm: 650. Platform Width mm: 595. Steering Castor Material: 125. Weight kg: 118.
| Type | Lifting Tables |
| Manufacturer | HC Slingsby PLC |
| Brand | Slingsby |
| Colour | Orange/Silver |
| Weight | 118kg |
| Maximum Load | 400kg |
| With Castors | Yes |
| Platform Size | 650x550mm |
| Lowered Height | 200mm |
| Lifting Height | 1500mm |
| 12V/60Ah battery with built in charger |
| 700 watt motor |
| Can be used as a stacker or work positioner |
| Conforms to EN1757-1:2001 |
| Lifting speed 80mm per sec |
| Max. platform height 1500mm |
| Min. platform height 200mm |
| Overall W x L x H 590 x 1100 x 1710mm |
| Supplied with platform, L x W: 650 x 550mm |
×
