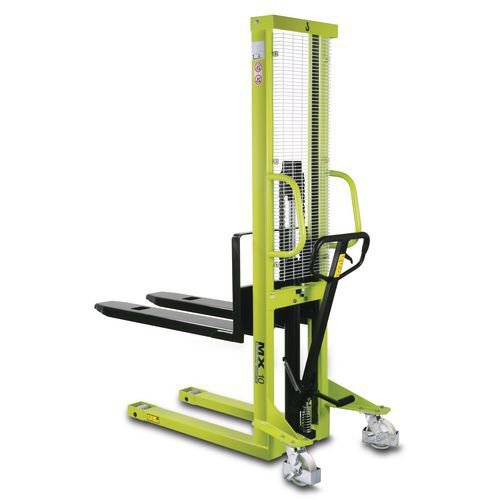

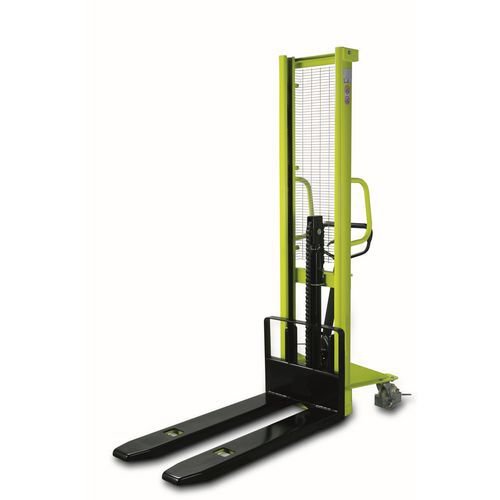

1000kg Manually operated pallet stacker, 1000kg 1600mm lift
Product Code:
414169
Pack Of
1
Capacity kg at Load Centre mm: 1000.
Capacity kg: 1000.
Capacity to Full Height kg: 1000.
Fork Height Lowered mm: 90.
Fork Height Raised mm: 1600.
Fork Length mm: 1150.
Fork Wheel Diameter mm: 80.
Fork Width mm: 170.
GTIN: 5052105584416.
Lift Height mm: 1600.
Load Centre mm: 600.
Open Mast Height mm: 2080.
Overall Height mm: 2080.
Overall Length mm: 1690.
Overall Width mm: 740.
Steering Castor Material: Polyurethane.
Steering Wheel Diameter mm: 150.
Weight kg: 210.
Width Over Forks mm: 550.
- General
- Capacity kg at Load Centre mm: 1000.
Capacity kg: 1000.
Capacity to Full Height kg: 1000.
Fork Height Lowered mm: 90.
Fork Height Raised mm: 1600.
Fork Length mm: 1150.
Fork Wheel Diameter mm: 80.
Fork Width mm: 170.
GTIN: 5052105584416.
Lift Height mm: 1600.
Load Centre mm: 600.
Open Mast Height mm: 2080.
Overall Height mm: 2080.
Overall Length mm: 1690.
Overall Width mm: 740.
Steering Castor Material: Polyurethane.
Steering Wheel Diameter mm: 150.
Weight kg: 210.
Width Over Forks mm: 550.
| Type | Pallet Trucks |
| Manufacturer | HC Slingsby PLC |
| Brand | Slingsby |
| Colour | Green/Black |
| Weight | 210kg |
| Maximum Load | 1000kg |
| Fork Height | 90-1510mm |
| Fork Size | 1150mm Length |
| Alternative foot pedal lifting |
| Ergonomic, plastic coated pump handle, with 3 position control lever |
| Fork L x W: 1150 x 550mm |
| Fork lift height (lowered) 90mm |
| On 150mm dia. nylon rear castors, 80mm dia. front nylon rollers |
| Overload safety pressure valve |
| Robust single mast stacker, with fixed forks |

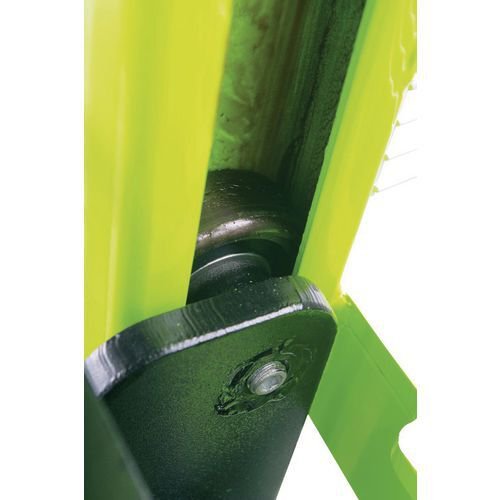

| Strong, reliable steel pulley and chain mechanism |
×
